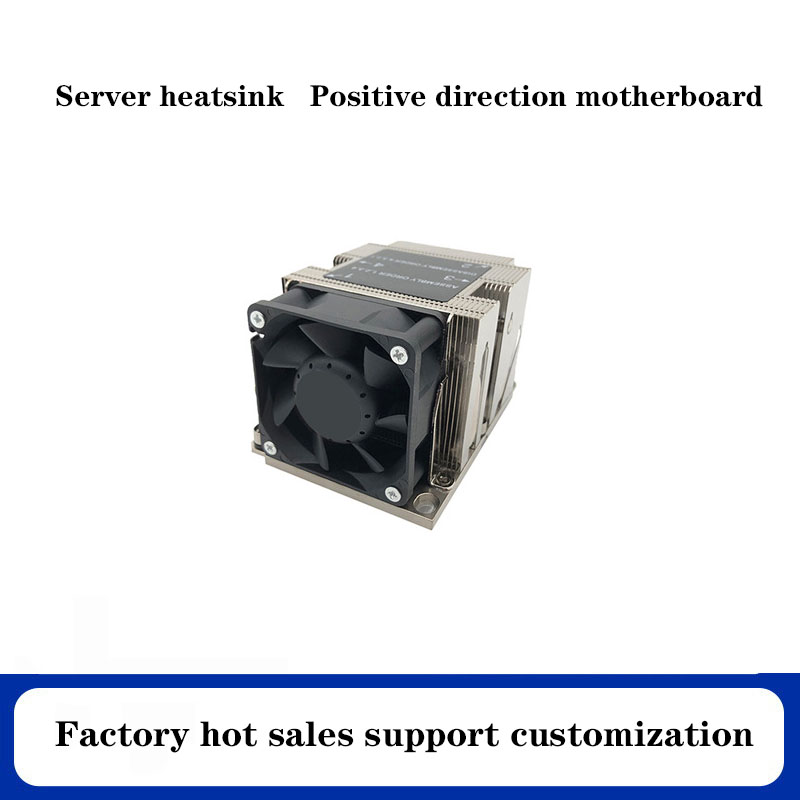

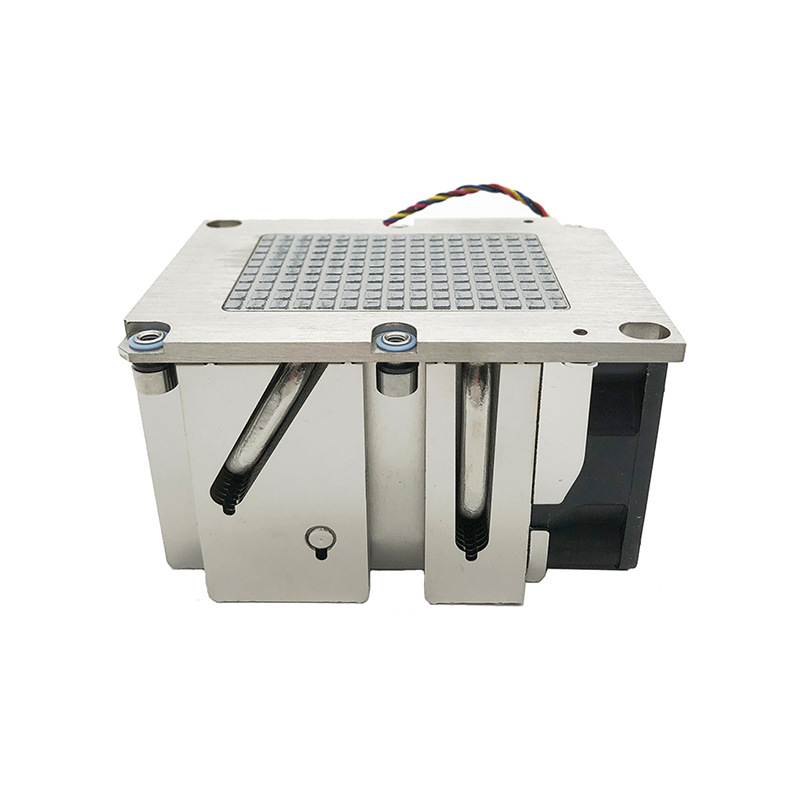

Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
1 / 5
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler
Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler

Server Heatsink 205W LGA3647 2U Aluminum Fin 4 Heat Pipe Computer Aluminum Heatsink CPU Cooler

Send Inquiry

Product Description

Product Description
CPU Radiator Detail 1
CPU Radiator Detail 2
CPU Radiator Detail 3

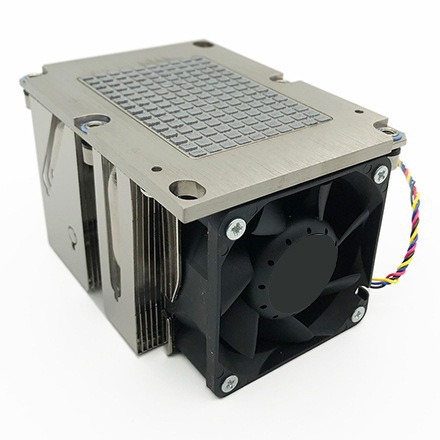

CPU Radiator Detail 4

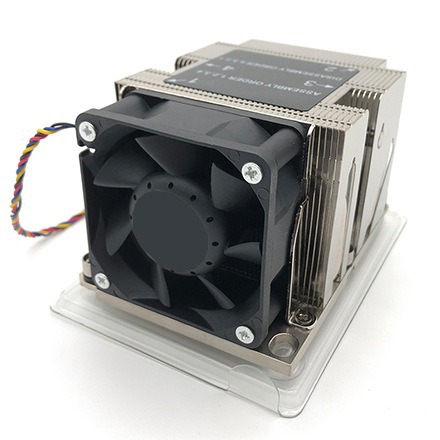

CPU Radiator Detail 5
CPU Radiator Detail 6
CPU Radiator Detail 7
CPU Radiator Detail 8
CPU Radiator Detail 9
CPU Radiator Detail 10
Specification
Model LGA3647-S82
Applicable Accessory Types CPU
Type CPU Radiator

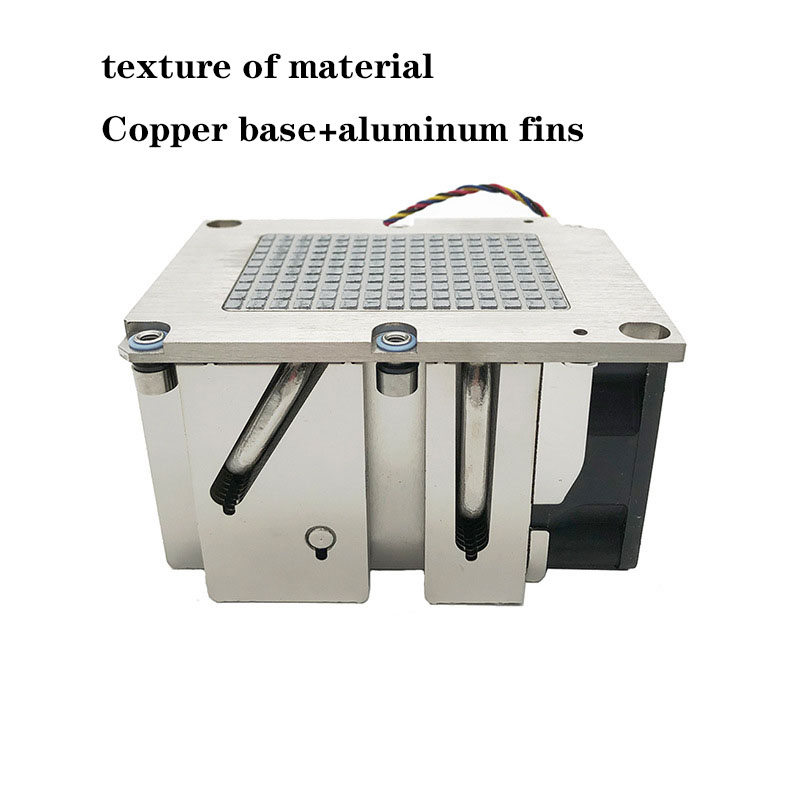

Texture of Material Copper base + Aluminum fins
Bearing Type Double Ball Bearings
Speed PWM 2100-6800RPM
Noise 52.50dBA (MAX)
Air Volume 34.50CFM (MAX)
Voltage 12V
Size 108mm * 78mm * 64.5mm
FAQ
Q Which CPU socket types is this radiator compatible with?
The LGA3647-S82 model is designed specifically for Intel LGA 3647 (Socket P) processors, commonly used in high-performance server configurations and workstation systems.
Q What materials are used in this CPU radiator?
It features a premium copper base combined with high-grade aluminum fins, ensuring optimal heat conduction from the processor and efficient heat dissipation.
Q Does the cooling fan support speed control (PWM)?
Yes, the integrated fan features smart PWM control with a speed range of 2100 to 6800 RPM. This allows the fan speed to dynamically adjust based on CPU load and temperature.
Q What type of bearing does the fan use, and what are its advantages?
The radiator utilizes a double ball bearing fan design, which provides exceptional reliability, heat resistance, and a significantly longer service life compared to standard sleeve bearing fans.
Q What are the dimensions and noise levels of this model?
The product measures 108mm * 78mm * 64.5mm. It is designed to run efficiently with a maximum noise rating of 52.50 dBA under peak speeds.
Q What is the maximum air volume and power requirement for the fan?
The fan operates on a standard 12V voltage supply and delivers a maximum air volume of 34.50 CFM, providing efficient airflow under high thermal loads.
